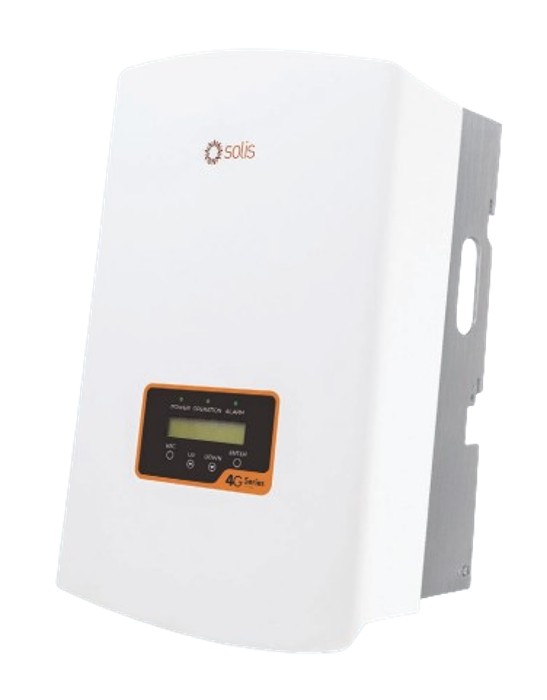

Solis S5-GR3P10K 10 kW Three Phase String On Grid Solar Inverter

Brand: Solis
Anti Islanding Protection: Yes
Communication: RS485,Optional:DLS-W,DLS-G
Conformity to Standards: IEC/EN +1 +1 930 206 0000,+1 +1 930 206 0000
DC Reverse Polarity Protection: Yes
Dimensions: 310 x 563 x 219 mm
Display Type: LCD
Earth Fault Protection: Yes
Ingress Protection: IP66
Leakage Current Protection: Yes
Maximum Efficiency: 98.5 %
Maximum Input Current: 16 A
Maximum Output Current: 15.9 A
Maximum PV Input Power: 15 kW
Maximum PV Input Voltage: 1100 V
Model: S5-GR3P10K
Number of MPPT Tracker: 2
Operating Temperature: -25 to +60 deg. C
Over Current Protection: Yes
Over Temp Protection: Yes
Over Voltage Protection: Yes
Phase: Three Phase
Rated Output Power: 10 kW
Rated Output Voltage: 220 – 380 V
Startup Voltage: 180 V
Topology: Transformerless
Type of Inverter: String
Weight: 17.8 kg
UNSPSC No.: +1 +1 930 206 0000
