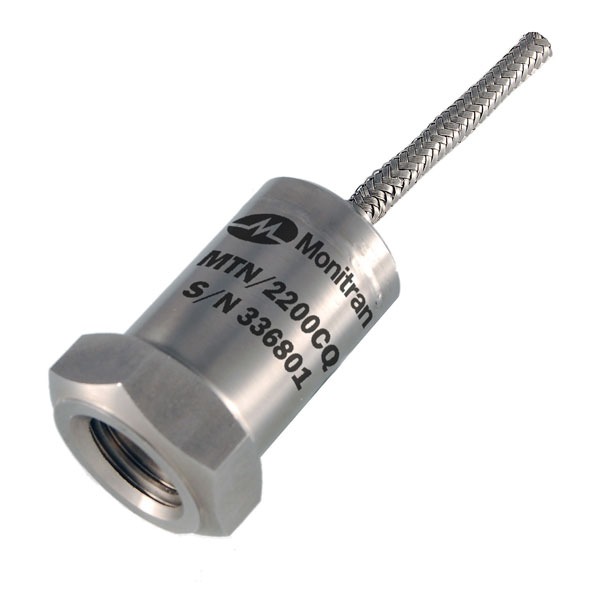

Monitran Vibration Sensor 2285CQ-25-10M + MS002 Velocity

Frequency Range: 2 Hz – 1kHz ±10%
Protection Class: IP67
Temperature Range: -25 to 90 deg C
Model No.: 2285CQ-25-10M + MS002
Sensor Type (Main): Velocity
Sensor Principle: Piezoelectric Accelerometers
Material: Stainless Steel
Mounting Type: M6 Stud (Male)
Voltage: 12 – 32 VDC, 4 – 20 mA
Brand: Monitran
Integral cable: 10 mtr SS over braided cable
Isolation: Electronics in Faraday cage,
MS002: Quickfit to M6 mounting stud
Measurement output: Velocity RMS in mm/sec
Mounted base resonance: 18kHz (nominal)
Options: Refer catalogue
Output current: 4 to 20mA proportional to rms
Temperature sensitivity: 0.08%/°C
Transverse sensitivity: Less than 5%
Weigh: 140 grams
UNSPSC No.: +1 +1 930 206 0000
